Waterproofing a Newly Built Basement in Fulham, SW6
A Type C cavity drain system installed to a newly constructed lower ground floor, designed to BS 8102:2022 to deliver a dry, Grade 3 environment ready for fit out.
Project at a Glance
The Brief
We were asked to attend a property in Fulham to inspect a newly constructed basement and provide a robust waterproofing design and specification. The client needed the below ground structure to achieve a reliably dry environment suitable for use as habitable living space, in line with BS 8102:2022, the British Standard for the protection of below ground structures against water ingress.
A new basement might look watertight on the day the concrete cures, but below ground construction carries risks that only show up later. Getting the waterproofing strategy right before the space is lined and finished is what protects the client from an expensive failure once the room is in use.
What the Survey Found
Our waterproofing surveyor, Michael Young, carried out a full inspection of the new structure. The basement was built from mixed substrates, which is a key detail when specifying a system:
- Floor slab: a cast concrete substrate.
- Retaining walls: a hybrid build, with a poured solid concrete lower section topped by around six courses of engineering brickwork.
- External protection: the client advised that an external waterproofing membrane had been applied to the earth retaining face of the concrete before the pour.
That external membrane is a strong first line of defence, but it could not be relied on as the only protection. Once a structure is backfilled, the membrane is buried, so its continuity, lap seals and any damage caused during backfilling cannot be visually inspected or pressure tested. BS 8102:2022 is explicit on this point: where the consequences of leakage are high, such as creating habitable space, or where an external barrier cannot be inspected, more than one type of waterproofing should be used.
Two further details shaped the design. First, the walls are not a single monolithic pour. The mortar joints in the brickwork, and the cold joint where the brick meets the concrete below, are naturally the most vulnerable points for moisture. Second, freshly poured concrete cracks minutely as it cures and leaches free lime over time, which can clog drainage if it is not accounted for.
There are also two lightwells at the front of the property. Their drainage is managed separately by others, and our design keeps that system fully isolated from the internal waterproofing drainage so there is no risk of external water surcharging back into the property.
The Waterproofing Strategy
We specified a Type C drained protection system, an internal cavity drain membrane combined with perimeter drainage, closed cell insulation and a sump and pump discharge. Combined with the external barrier already in place, this forms the multi tiered strategy BS 8102:2022 calls for, designed to deliver a Grade 3 habitable environment.
The reason Type C suits a basement like this comes down to how it handles water. Rather than trying to hold water back against the structure, which puts pressure on those vulnerable brick and cold joints over time, a Type C system accepts that minor moisture may pass through, depressurises it safely behind the membrane, and diverts it away before it ever reaches the living space.
It also solves the new build issues directly. An anti lime inhibitor is applied to neutralise the free lime leaching from the fresh concrete, so it cannot clog the drainage channels. If the water table rises, the floor membrane relieves the hydrostatic pressure and guides it to the sump, so the slab is never subjected to upward water pressure that could crack a finished floor.
The Installation
We installed a full Newton 508 cavity drain system throughout the basement. The scope of works included:

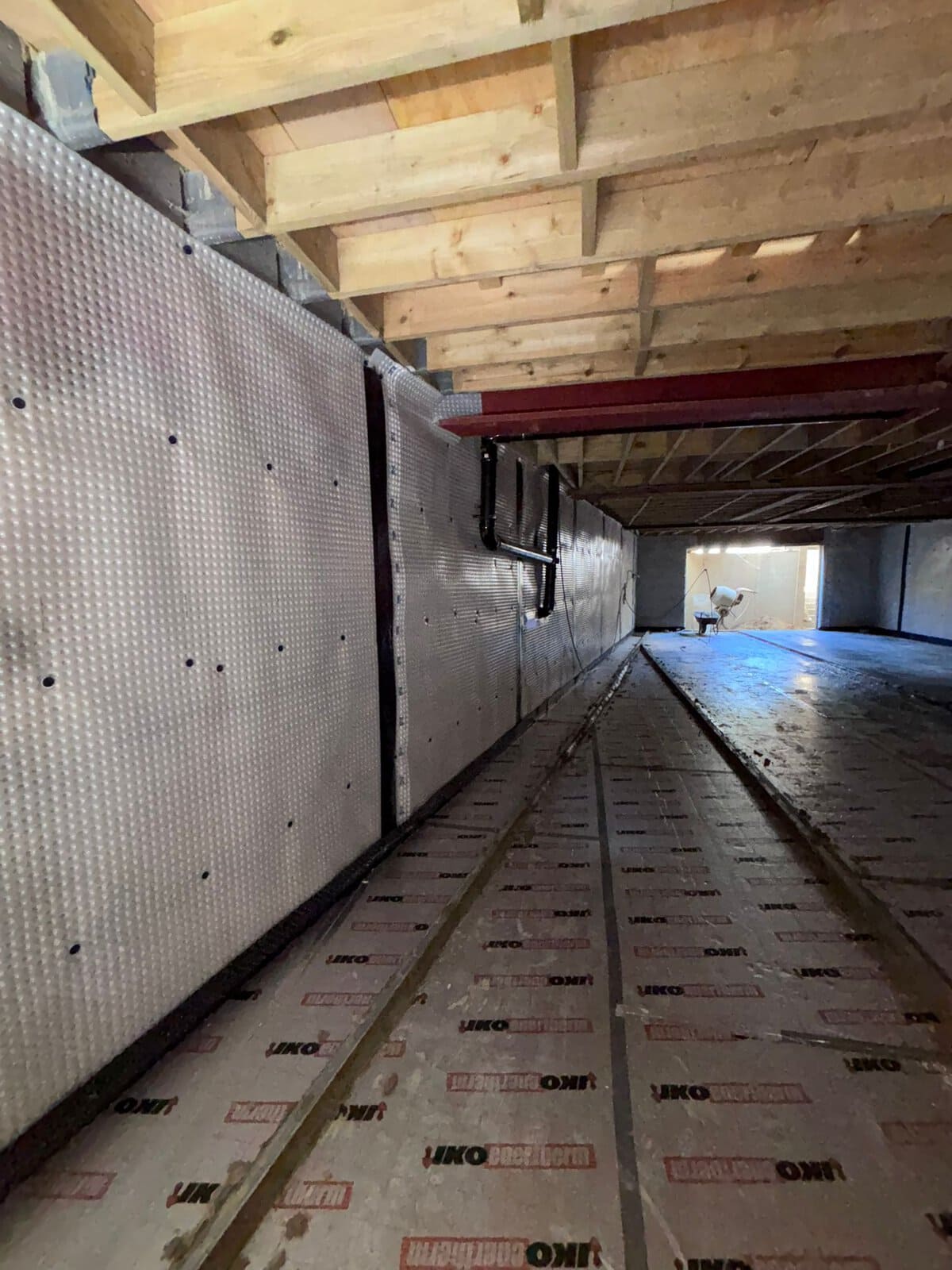

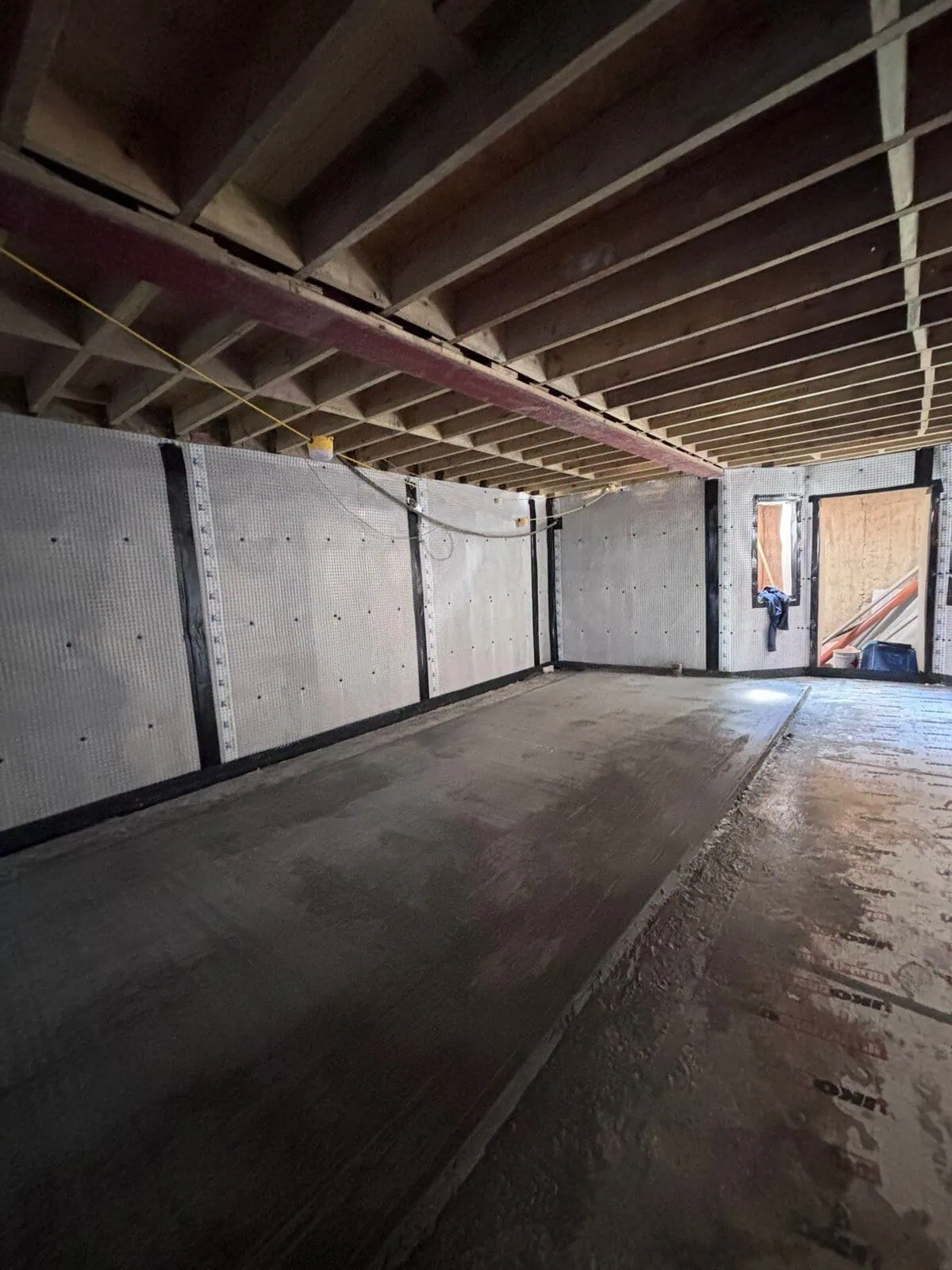

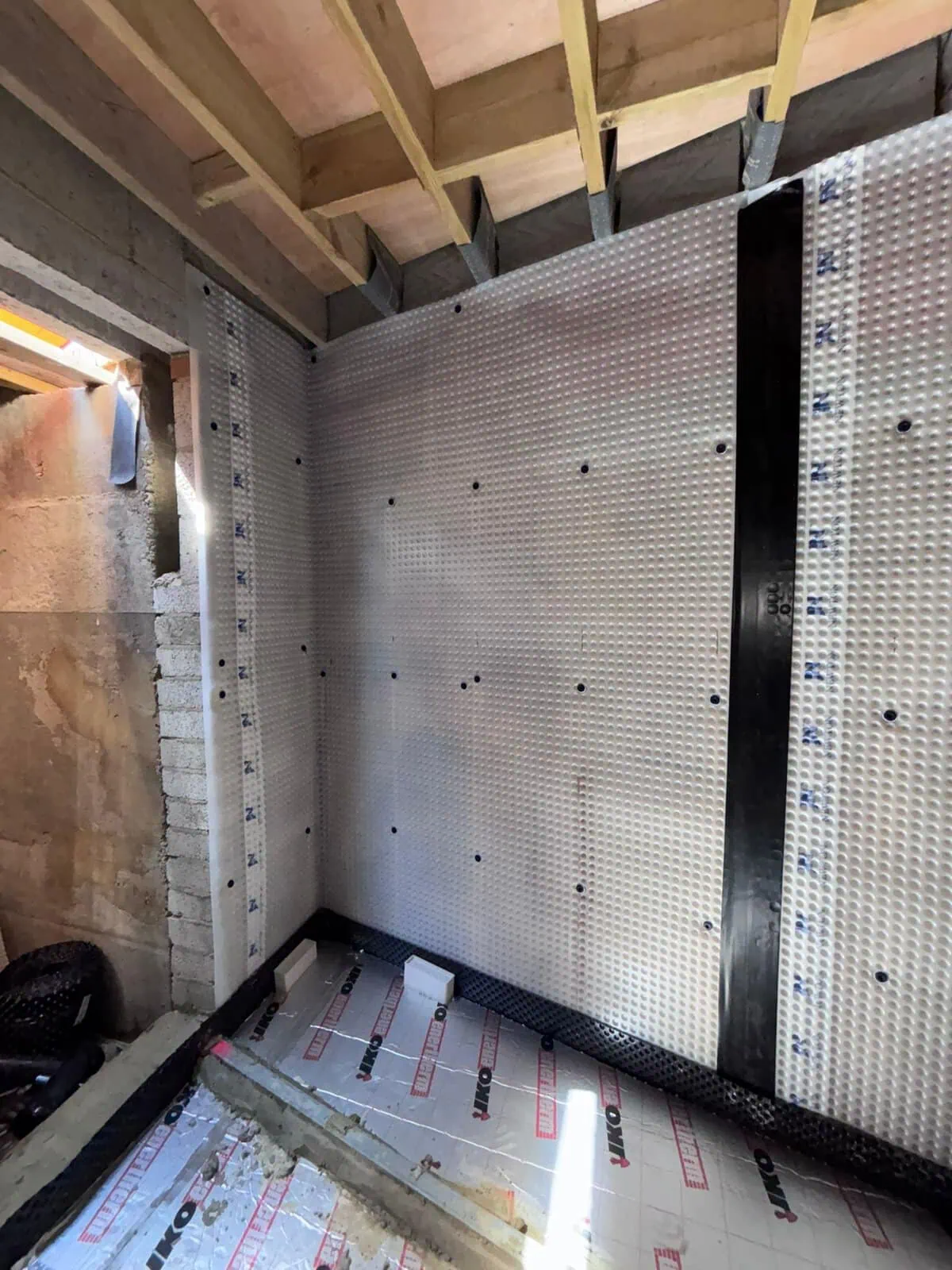

- Newton 508 mesh faced cavity drain membrane fixed to all retaining walls.

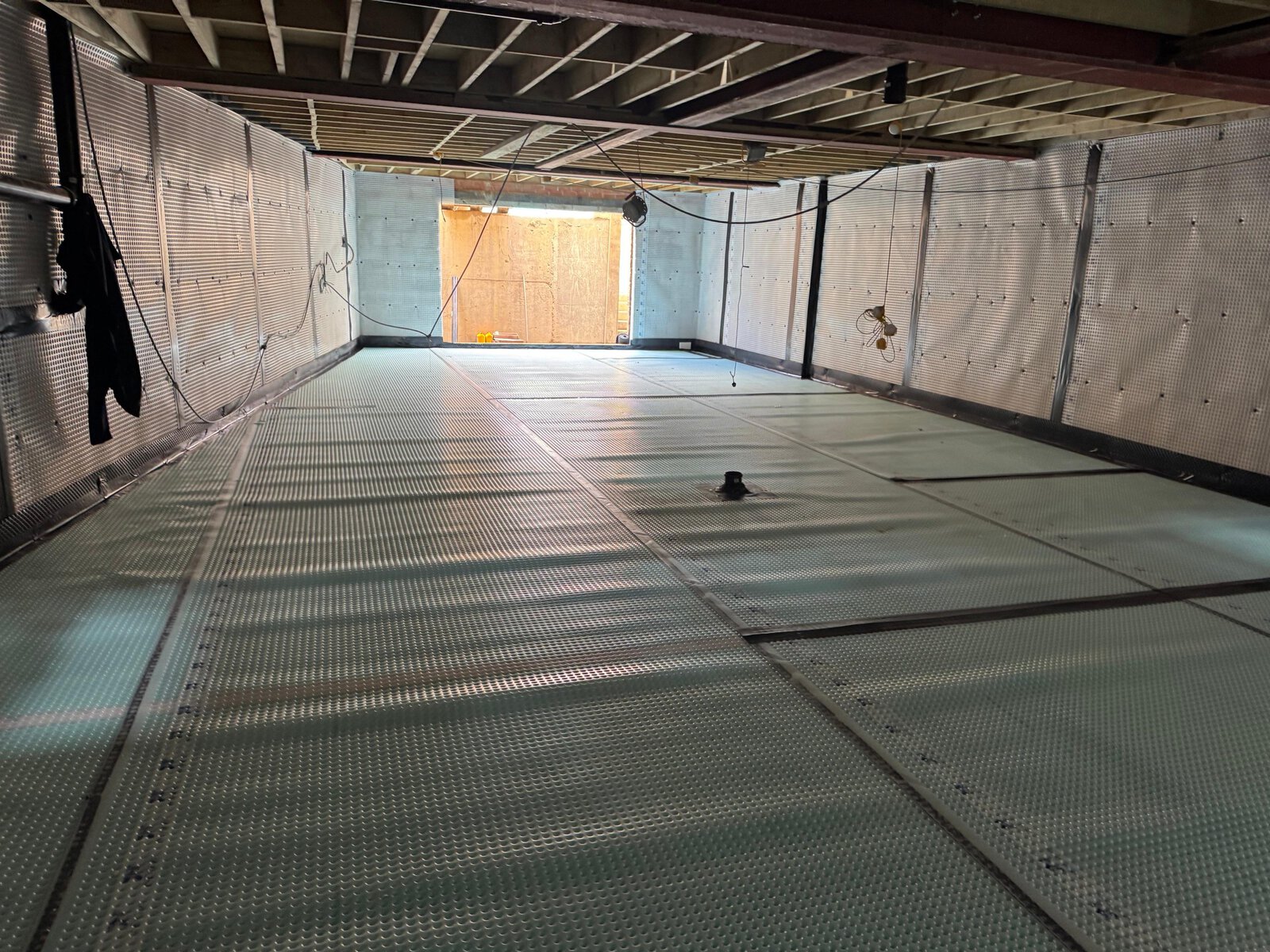

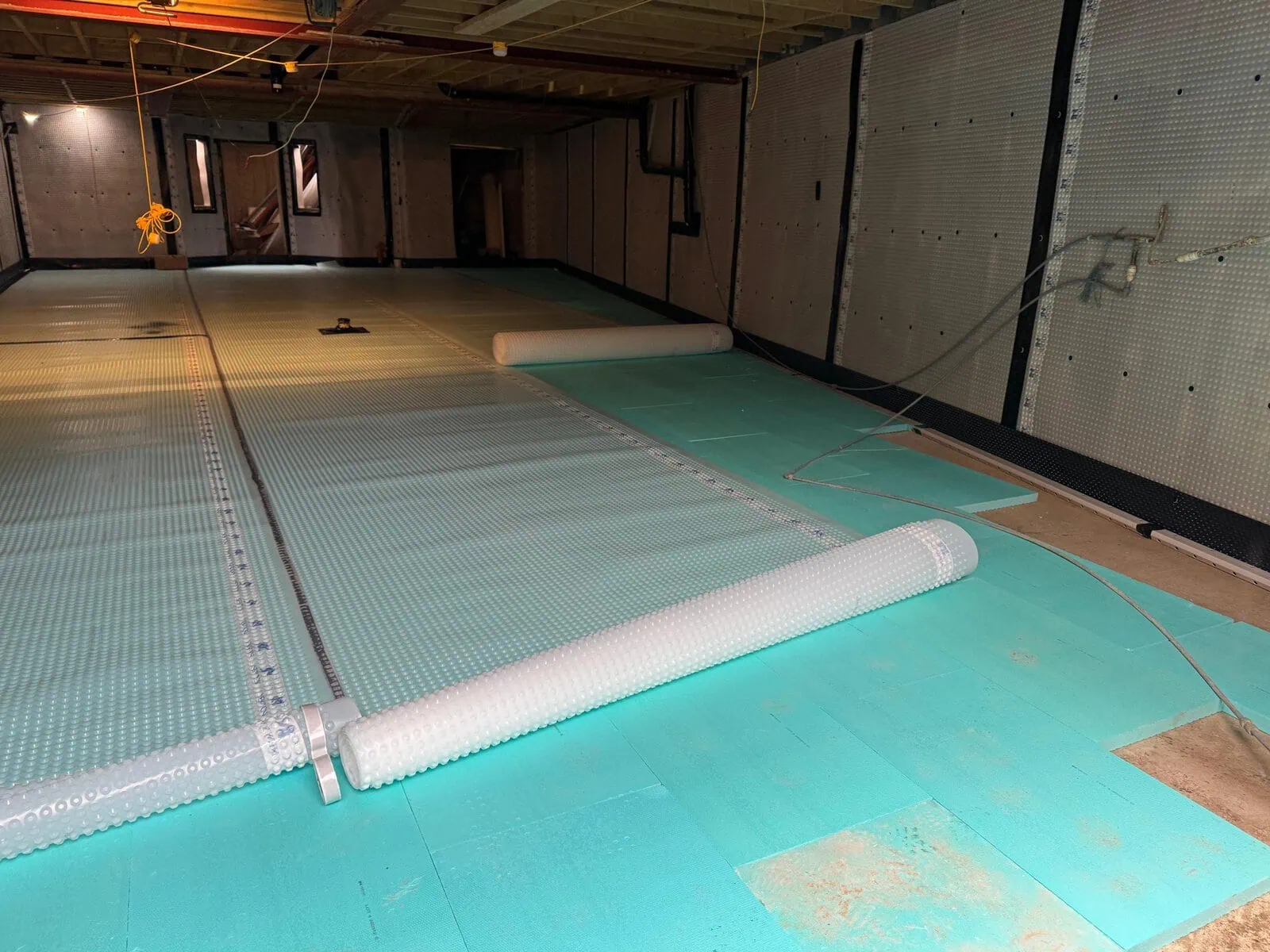

- A Newton floor membrane laid across the slab, over closed cell XPS insulation so the thermal barrier is protected from ground moisture and keeps its insulating value long term.
- A perimeter drainage channel at the wall to floor junction to collect and route any water.
- A sump and pump chamber to discharge water away from the structure, kept fully isolated from the separate lightwell drainage.
- An anti lime inhibitor applied to protect the drainage system from the curing concrete.
The photographs below show the system going in, from the walls being membraned through to the floor membrane and insulation being laid out across the slab.
The Result
The Newton 508 system was installed to membrane stage across the full basement, creating a continuous, depressurised waterproof envelope to the walls and floor. Combined with the external barrier, the structure now has the multi tiered protection BS 8102:2022 requires for habitable use, designed to achieve a Grade 3 environment when paired with appropriate ventilation, heating and dehumidification.
With the waterproofing complete, the basement is ready for the client to take forward to fit out, with the assurance that water is being managed correctly behind the finishes rather than left to find its own way in. The works are backed by our 10 year structural waterproofing guarantee.
Why this approach matters: a Type C system is widely regarded as the gold standard for finishing newly built basements. It manages water rather than trying to stop it, removes the reliance on a buried external membrane that cannot be inspected, and gives the property a serviceable, maintainable and long term dry environment.
Basement Waterproofing FAQs
What is a Type C waterproofing system?
A Type C, or drained protection, system manages water rather than trying to block it. An internal cavity drain membrane is fixed to the walls and floor, and any moisture that enters is collected in a perimeter channel, directed to a sump and pump, then discharged away from the property. It is widely regarded as the most reliable approach for habitable basements.
Why does a new basement need internal waterproofing if it already has an external membrane?
An external membrane applied before backfilling is a strong first line of defence, but once it is buried it cannot be inspected or pressure tested, so its long term integrity cannot be confirmed. BS 8102:2022 recommends combining more than one type of waterproofing where leakage would affect habitable space, which is why an internal Type C system is added.
What does a Grade 3 basement environment mean?
BS 8102:2022 defines grades of internal environment for below ground spaces. Grade 3 is a fully habitable standard suitable for living space, which requires the waterproofing system to be supported by appropriate ventilation, heating and dehumidification.
How long does a basement waterproofing system last?
A correctly installed cavity drain system is designed to last the life of the building. The sump pump is the main serviceable part and is typically replaced every 10 to 15 years. Our basement waterproofing is backed by a 10 year structural waterproofing guarantee.
Do you carry out basement waterproofing across London?
Yes. We design and install BS 8102 compliant waterproofing for new build and existing basements across London and the South East. You can read more on our basement waterproofing page.
Planning a basement or dealing with a wet one?
Our waterproofing surveyors design BS 8102 compliant systems for new build and existing basements across London and the South East. The survey fee is deducted from the cost of works if you go ahead.
Book a Waterproofing SurveySurvey carried out by Michael Young, waterproofing surveyor at Advanced Damp. Project completed in Fulham, SW6.
